Making Changes in Angle of Attack

The push/pull motion of the yoke and the trim wheel are part of the same system, jointly controlling the angle of attack.


If you want to make a temporary increase in angle of attack, just raise the nose by applying a little back pressure on the yoke. When you reach the new pitch attitude, you can release most of the pressure, and for the first few moments the airplane will maintain the new pitch attitude. Then, as it slows down, you will need to maintain progressively more back pressure in order to maintain the new pitch attitude (and new angle of attack). After a few seconds things will stabilize at a new pitch attitude, a new angle of attack, and a new airspeed. At this point, if you release the back pressure, the airplane will want to drop its nose so it can return to its trimmed angle of attack.


If you push or pull the airplane off its trim speed and then suddenly let go of the yoke, the airplane will not return smoothly and immediately to its trim speed; there will be some phugoid oscillation. To undo a temporary change in angle of attack, the proper technique requires observing and controlling the pitch attitude. Let the nose drop to the correct pitch attitude, then apply enough back pressure to keep it from dropping farther. Then, as the airplane gradually returns to its trim speed, you will need progressively less pressure.

Similar logic applies to making long-term changes in angle of attack. Use the yoke to change the pitch attitude. At first very little pressure will be required to maintain the new pitch attitude. Then, as the airspeed changes, use pressure on the yoke to keep the attitude where you want it. Make the change permanent by using the trim wheel to trim off the applied pressure.

Let's see how these ideas apply to a typical maneuver: levelling off from a climb. Initially let's suppose you start out nicely trimmed, climbing at 475 feet per minute at 90 knots true airspeed. As discussed in section 2.11, that means your direction of flight is 3 degrees above the horizon. As shown in figure 2.5, the first step in the level-off is to change your direction of flight so it becomes horizontal. During the brief time that the direction of flight is changing, the aircraft will be out of equilibrium; lift will be less than weight. The load on the aircraft and its occupants will be slightly less than one G.

　

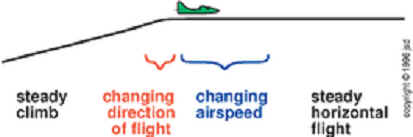

Figure 2.5: Level-Off Maneuver


As the direction of flight changes, you will need to lower the nose the same amount (three degrees). At this point, since the direction of flight and the pitch attitude have changed together, the angle of attack is (for the moment) the same as it was during the climb. This can be seen by comparing the top two parts of figure 2.6. The airspeed is still 90 knots, which is the trim speed, so no yoke force will be needed to maintain the new attitude (for the moment)..
